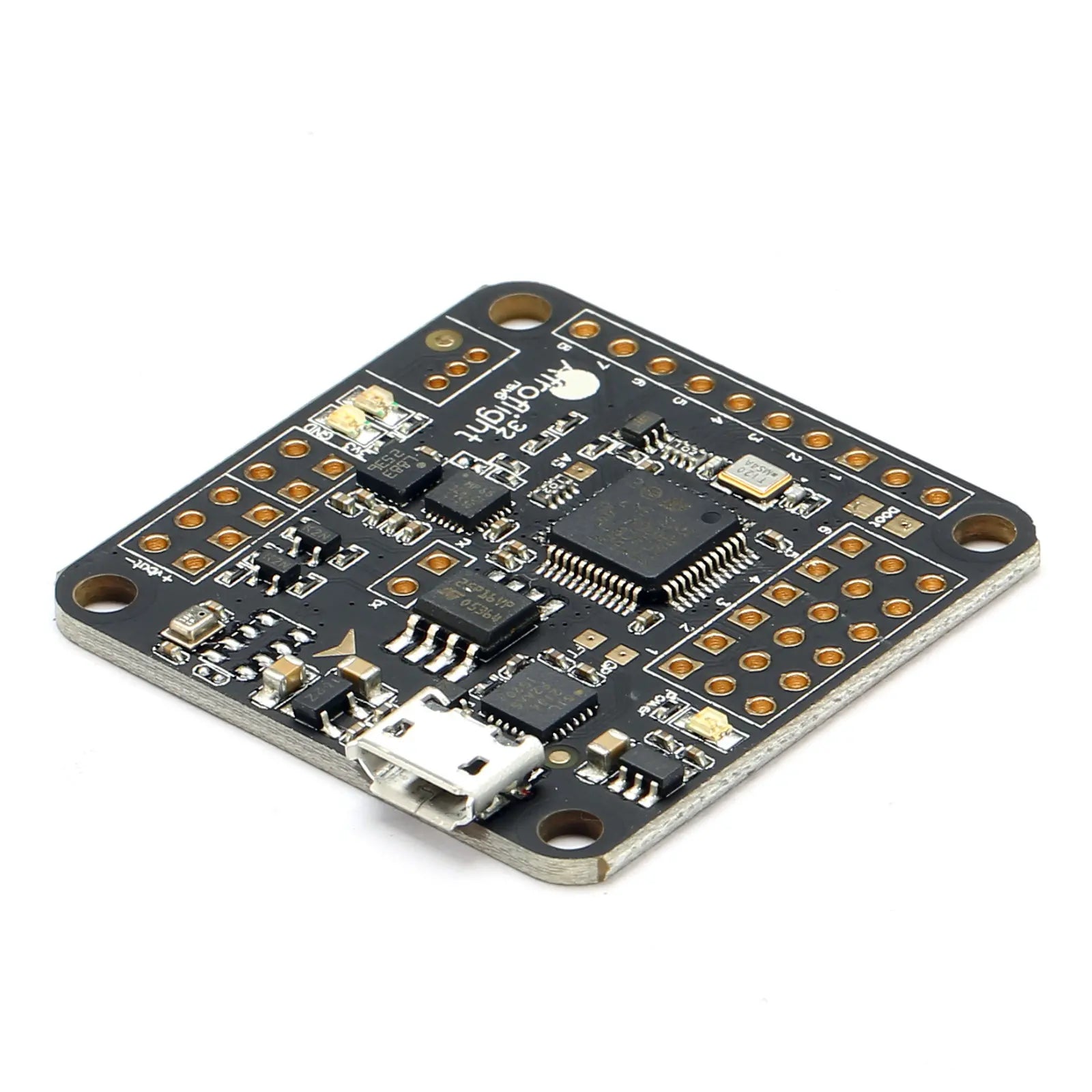

The Naze32 Rev6 Acro Flight Controller is designed for small to mid-sized outdoor or multidoor crafts. It is used as a standalone camera stabilizer. It is really easy to set up...
The Naze32 Rev6 Acro Flight Controller is designed for small to mid-sized outdoor or multidoor crafts. It is used as a standalone camera stabilizer. It is really easy to set up and has the configuration based on familiar software which name is “MultiWii”.
CPU consists on STM32 F103 @ 72MHZ clock
Gyroscope number is MPU6500
Accelerometer number is MPU6500Barometer (altitude) number is BMP280
it can use with Flight software and it can also be used many other programs.

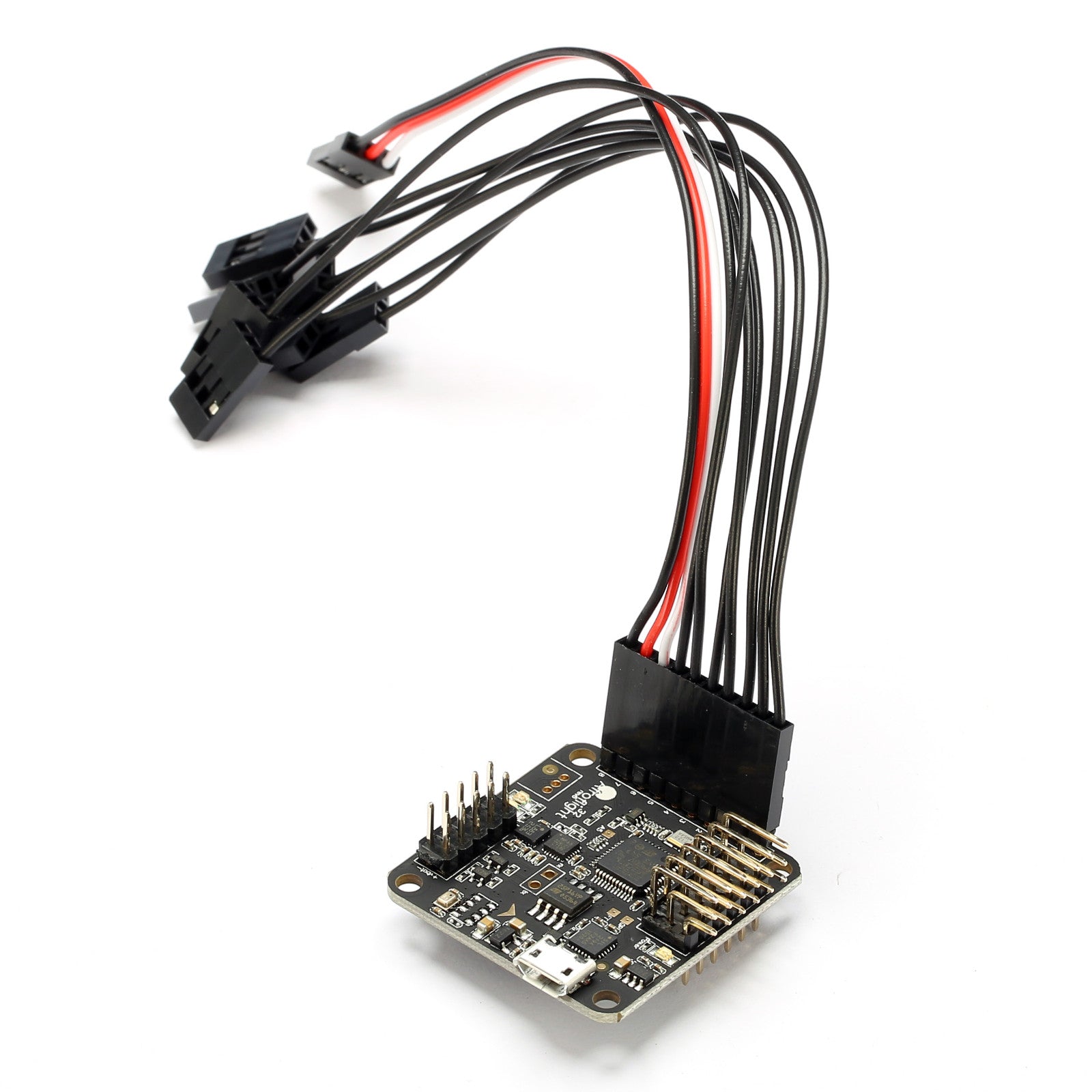

it can also be used including various angled pinout options, hard cases, and cable harness.
it consists of Battery voltage monitoring
it has Built-in FrSky telemetry converter
it also has a Modern 32-bit processor (STM32 F103) running at 3.3V/72MHz.
Acro
it consists of Onboard USB for setup and configuration
Extra bright LEDs
it has Modern GUI for all operating systems, Baseflight Configurator
its Height is 36mm
its Width is 36mm
Weight is 6 grams (no headers, 8 grams with)

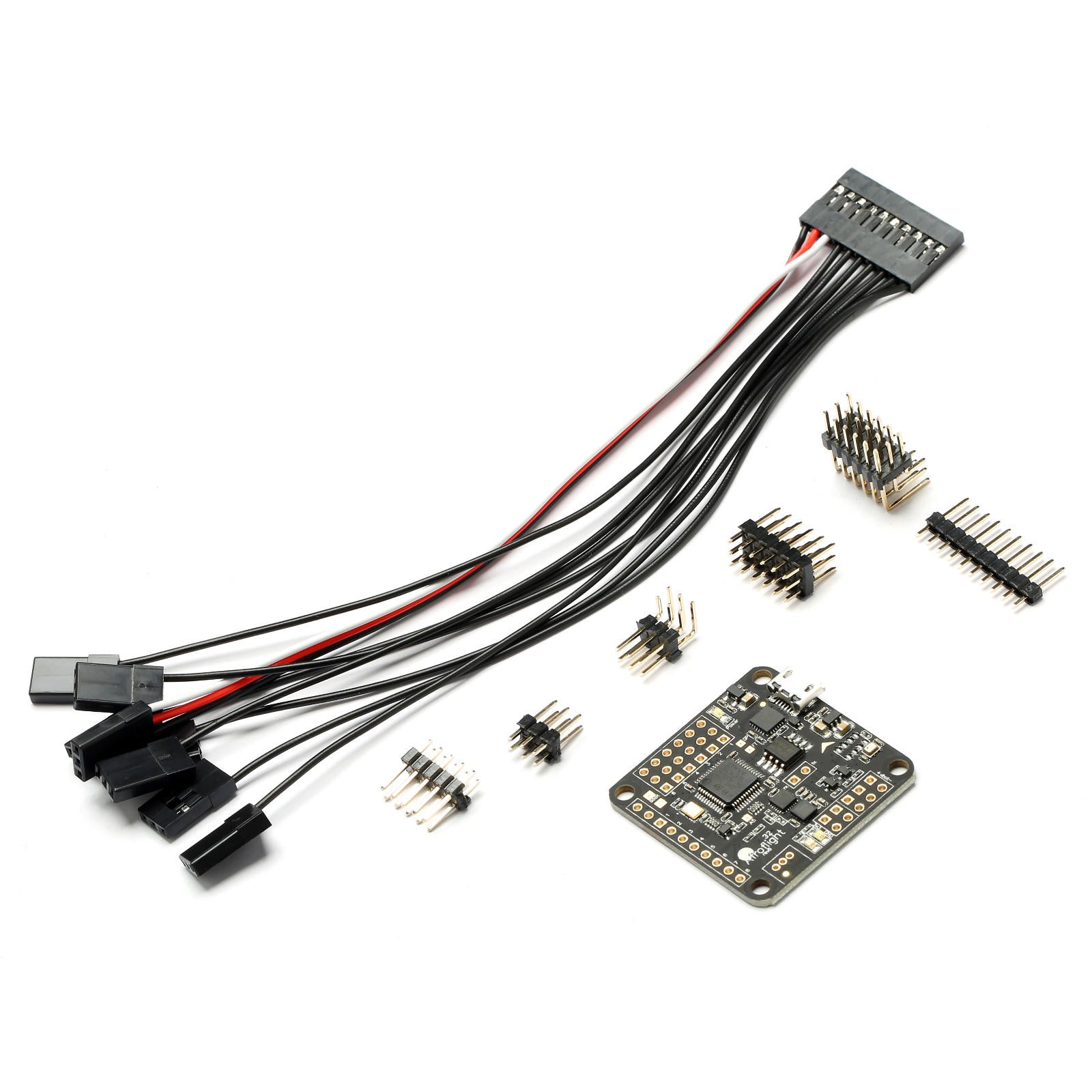

Headers consist of Includes 1x 3×6 90-degree pin headers, 1x 1×2 straight pin headers, 1x 2×3 90 degree pin headers, and 1x 2×5 straight pin headers.
